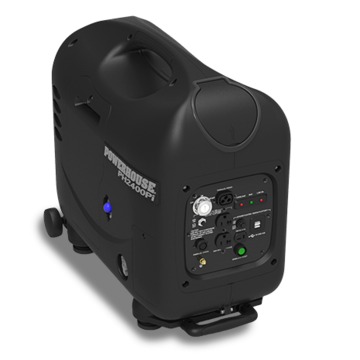

Powerhouse PH2400Pi Generator (72-0678)


Powerhouse PH2400Pi Generator

  • Parallel-Ready:Optional parallel kit has built-in digital LCD meter to display power information
  • Exclusive InverterProtec™ shuts down inverter when overloaded but keeps engine running
  • Largest Engine/Most HP in Class
  • Factory installed wheel kit included for ease of transportation
  • Powerful Yet Compact Engine
  • Outstanding Quality
  • Unbeatable Value
  • Clean Power
  • Quiet
  • Smart USB Ports
  • Efficient
  • Ecological
  • Warranty: 1 yr. (residential) / 6 mos. (commercial)
AC Output: Rated / Max (Watts) 2.4kW
Continuous Run Time (hr)
(Full Load / 1/4 Load, unless otherwise specified)
3.1 / 7.2 hrs
Dry Weight (gross) (lbs) 82.75lb (37.5kg)
Dry Weight (net) (lbs)
Generator Dimensions 19.5”H x 12”W x 22”D
Generator Dimensions (generator only)
Noise Level @ 23 ft.
(Zero Load / Full Load)
61.2 / 70.9 dB
Automatic Low Oil Shutdown Yes
Certifications CETL, EPA, CARB, ISO
Choke Manual
DC Output 12V 8.3A
Electric Circuit Breaker Inverter Controlled and Panel Mounted
Engine Type 152F, Single Cylinder, 4-stroke OHC Air-Cooled, Gasoline
Fuel Economy Switch No Switch (Automatic Function)
Fuel Type Unleaded gasoline
Fuel Tank Capacity (gal) 1.3 gal (4.9L)
Horsepower (hp) / Displacement 4.35hp / 125cc
Ignition System CDI
Max Current (A) 20.0A
Max Output (kW) 2.4kW
Oil Capacity (oz) 15.6 fl oz
Oil Type 0W-30, 0W-40 below 32º F, 10W-30, above 32º F
Overspeed Protection
Overload Reset Switch Yes
Primer Bulb Yes
Rated Current (A) 19.2A
Rated Frequency (Hz) 60Hz
Rated Output (kW) 2.3kW
Rated Voltage (V) 120V
Receptacles 120V, 20A 5-20R Duplex USB, 1x @ 2.0A or 2x @ 1.0A
Spark Plug
Starting System Electric & Recoil
USB Ports
